How to Choose the Right Fuse for Your Electronics Project
| Michael Eaddy
Fuses are the unsung heroes of any electronics project. They protect your circuit, your components, and — in some cases — your workspace from the damage that comes when too much current flows where it shouldn't. If you've ever stared at a parts drawer full of AGC, GMA, and MDL fuses and wondered which one to grab, this guide is for you.
Why Fuse Selection Matters
A fuse is a sacrificial component: it's designed to fail first so everything else doesn't. Choose one that's too large and it won't blow before your wiring or components do. Choose one that's too small and it'll trip constantly under normal operating current. Getting the rating right is a basic skill every hobbyist and technician needs.
Two Numbers You Need to Know
Every fuse is defined by two specifications:
- Current rating (amps) — the maximum continuous current it will carry without blowing. A common rule of thumb: size the fuse at 125% of the circuit's normal operating current.
- Voltage rating — the maximum circuit voltage the fuse can safely interrupt. Your fuse's voltage rating must meet or exceed the supply voltage in your circuit.
Fuse Types: AGC vs. GMA — What's the Difference?
If you're working with 12 V automotive, hobby, or bench-power circuits, you'll most often encounter two glass-tube form factors:

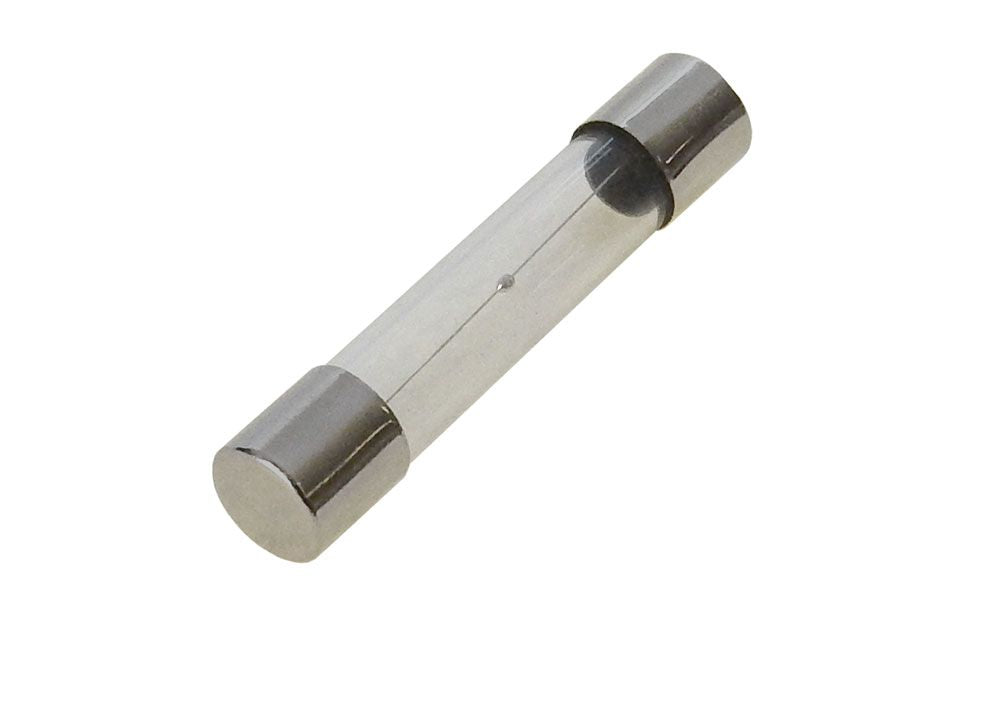

AGC (3AG) Fuses — 1/4" × 1-1/4"
The AGC, also called the 3AG, is the classic North American glass-tube fuse. At 1/4" in diameter and 1-1/4" long, it fits the widely available AGC (3AG) Fuse Post — a chassis-mount holder that makes fuse replacement tool-free. Use AGC fuses when your panel, enclosure, or power supply already has a 3AG holder installed, or when you're wiring a new project and want a holder that's easy to source.
GMA (5×20 mm) Fuses — Metric Glass Tube
The GMA is the IEC-standard equivalent: 5 mm in diameter, 20 mm long. These are common in European-designed equipment and in modern switching power supplies and wall adapters sold worldwide. Two popular ratings for bench work:
- 20 AMP GMA FUSE — use this for higher-current loads such as motor controllers, solenoids, or multi-rail power supplies where sustained current draw is significant.
- 10A GMA FUSE — a good all-around choice for moderate loads: LED strips, relay boards, and general 12 V accessories.
How to Calculate the Right Fuse Rating
- Find your load current. Check the datasheet or nameplate for maximum current draw (often listed as "rated current" or "Imax").
- Multiply by 1.25. This headroom prevents nuisance blowing during inrush or brief current spikes.
- Round up to the nearest standard rating. Common ratings are 1 A, 2 A, 3 A, 5 A, 7.5 A, 10 A, 15 A, 20 A, 25 A, 30 A.
- Confirm the voltage rating. A fuse rated for 32 V DC is not safe on 120 V AC, even at the same amperage.
Example: Your motor controller draws a maximum of 8 A. Multiply: 8 × 1.25 = 10 A. Select the 10A GMA FUSE if your holder is 5×20 mm, or the equivalent 10 A AGC if you're using an AGC fuse post.
Fast-Blow vs. Slow-Blow (Time-Delay)
Standard glass fuses are fast-blow: they respond almost instantly to an overcurrent. Slow-blow (or time-delay) fuses tolerate a brief inrush surge — motors and transformers draw 5–10× their rated current for a fraction of a second when they start. Using a fast-blow fuse on a motor will cause it to blow every time the motor starts, even though nothing is wrong. Check whether your circuit produces start-up inrush and choose accordingly.
Quick Reference: Which Fuse Do I Need?
| Application | Typical Rating | Recommended Type |
|---|---|---|
| Small 12 V LED strips (under 8 A) | 10 A | 10A GMA |
| 12 V power distribution panel | 20 A | 20A GMA |
| Chassis-mount, North American panel | Match load × 1.25 | AGC (3AG) Post + Fuse |
Installation Tips
- Always install the fuse as close to the power source as possible — this protects the full length of wiring in the circuit.
- Use an inline or panel-mount fuse holder so the fuse is accessible and replaceable without cutting wires.
- Keep a few spare fuses on hand at each rating you use. A blown fuse is always a signal to investigate the cause before replacing it.
Summary
Choosing the right fuse comes down to three things: match the current rating to your load (×1.25), match the voltage rating to your supply, and choose the physical format that fits your holder — AGC for traditional North American panels, GMA for modern 5×20 mm holders. Get those three right and your fuse will do exactly what it's supposed to: protect everything else.
