Understanding LEDs: A Beginner’s Guide to Light-Emitting Diodes

LEDs are everywhere—from household light bulbs and electronic displays to automotive lighting and circuit boards. These small electronic components are efficient, reliable, and available in a wide variety of colors, sizes, and styles.

Whether you’re new to electronics or looking for components for your next project, understanding how LEDs work can help you choose the right part.

What Is an LED?

LED stands for Light-Emitting Diode. It is a semiconductor device that produces light when an electric current flows through it in the correct direction.

Unlike traditional incandescent bulbs, LEDs do not use a heated filament to produce light. Instead, they generate light through a process called electroluminescence.

LEDs are commonly used as:

• Indicator lights on electronic devices
• Status lights on circuit boards
• Display lighting
• Automotive lighting
• Flashlights and portable devices
• Decorative and accent lighting
• Arduino and other DIY electronics projects

How Do LEDs Work?

An LED is a type of diode, which means it allows current to flow primarily in one direction.

When the LED is connected correctly to a power source, current passes through its semiconductor material, causing it to emit light.

An LED typically has two leads:

• Anode (+): The positive terminal.
• Cathode (−): The negative terminal.

Current generally flows from the anode to the cathode when the LED is forward-biased.

How to Identify LED Polarity

Depending on the LED design, you can often identify its terminals by looking for these features:

• The longer lead is usually the anode, or positive lead.
• The shorter lead is usually the cathode, or negative lead.
• The flat edge on a standard round LED typically indicates the cathode.
• Inside the LED, the larger metal component often identifies the cathode.

Always check the manufacturer’s specifications when polarity is important.

Why Do LEDs Need a Resistor?

One of the most important things to understand about LEDs is that they generally need current limiting.

Connecting an LED directly to a power supply without appropriate current control can cause excessive current to flow through the LED, potentially damaging it.

A resistor is commonly used to limit the current.

LED Resistor Calculation

You can calculate the required resistor using this formula:

R = (Vs − Vf) ÷ I

Where:

• R = Resistance in ohms
• Vs = Supply voltage
• Vf = LED forward voltage
• I = Desired LED current in amps

Example

Suppose you have:

• A 5V power supply
• An LED with a forward voltage of 2V
• A desired current of 10mA, or 0.01A

The calculation would be:

R = (5V − 2V) ÷ 0.01A

R = 300 ohms

A standard 330-ohm resistor would be a practical choice for this example, provided the LED’s specifications support the intended operating conditions.

Common LED Colors

LEDs are available in many different colors. The color is determined by the semiconductor material used to produce the light.

Common LED colors include:

LED Color	Common Applications
Red	Power indicators, warning lights, displays
Green	Status indicators, control panels
Blue	Electronic displays, decorative lighting
Yellow	Warning indicators, automotive applications
White	General lighting, flashlights
Orange	Indicators, displays, automotive lighting
Infrared	Remote controls and sensors

Different colors can have different forward-voltage requirements, so it’s important to check the specifications before selecting a resistor or power supply.

Common LED Sizes

LEDs come in various sizes and packages to fit different applications.

3mm LEDs

Small LEDs commonly used for:

• Compact circuit boards
• Indicator lights
• Electronic hobby projects
• Space-limited applications

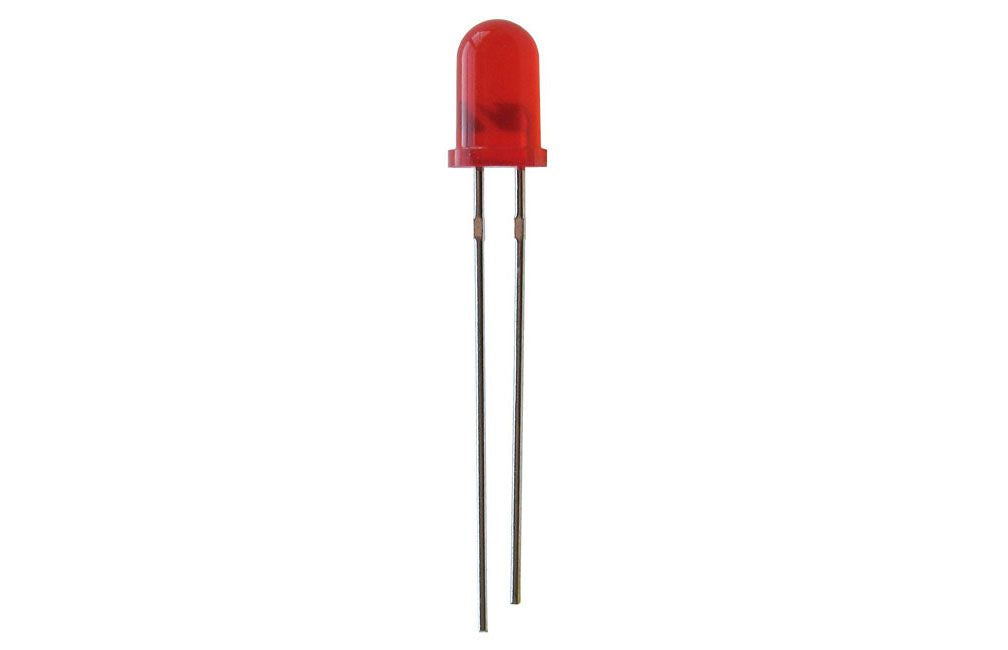

5mm LEDs

One of the most popular LED sizes for electronics projects.

They are frequently used in:

• Arduino projects
• Breadboards
• Control panels
• DIY electronics kits
• General-purpose indicator applications

10mm LEDs and Larger

Larger LEDs may be used when a bigger viewing area or different mechanical design is required.

The physical size of an LED does not necessarily determine its brightness. Always check the manufacturer’s electrical and optical specifications.

Advantages of Using LEDs

LEDs offer several benefits compared with traditional lighting technologies.

1. Low Power Consumption

Many LEDs require relatively little electrical power, making them useful for battery-powered electronics and energy-conscious designs.

2. Long Operating Life

LEDs can provide long service life when operated within their specified electrical and thermal limits.

3. Fast Response Time

LEDs turn on and off very quickly, making them useful for electronic indicators, displays, and signaling applications.

4. Small Size

Their compact size allows LEDs to be installed in small electronic devices and circuit boards.

5. Wide Variety of Options

LEDs are available in different colors, sizes, brightness levels, viewing angles, and package styles.

How to Choose the Right LED

Before purchasing an LED, consider the following specifications:

1. Forward Voltage
The voltage typically required for the LED to operate at a specified current.

2. Forward Current
The amount of current the LED is designed to handle.

3. Color
Choose the color that fits your application.

4. Size
Make sure the LED fits your circuit board, panel, or project.

5. Brightness
Check the manufacturer’s brightness specifications to ensure the LED is suitable for your needs.

6. Polarity
Verify the anode and cathode before installation.

7. Mounting Style
Choose between through-hole, surface-mount, or other package types depending on your project.

LEDs in DIY Electronics Projects

LEDs are among the easiest components for beginners to use. They are often included in introductory electronics kits because they provide immediate visual feedback.

For example, an LED can indicate when:

• A circuit is powered on.
• A button has been pressed.
• A sensor has detected movement.
• A battery is charging.
• A microcontroller has completed an operation.

Platforms such as Arduino and ESP32 make it easy to control LEDs using software, allowing users to create flashing lights, status indicators, and interactive projects.

Shop LEDs and Electronic Components at AreTronics

Whether you’re repairing an electronic device, building a circuit, or working on a DIY project, choosing the right LED is essential for reliable performance.

At AreTronics.com, you can explore a selection of electronic components for hobbyists, technicians, engineers, and businesses.

When selecting your next LED, remember to check the voltage, current, size, color, and polarity to ensure it is compatible with your project.

Visit AreTronics.com to explore LEDs and other electronic components for your next project!

Frequently Asked Questions About LEDs

Can I connect an LED directly to a battery?
It depends on the battery and LED. A suitable current-limiting resistor or other current-control method is generally needed.

What is the difference between a 3mm and 5mm LED?
The main difference is physical size. Their electrical and optical characteristics can also differ, so check the specifications.

Can LEDs be used with Arduino?
Yes. LEDs are commonly used with Arduino boards for indicators, experiments, and learning electronics.

Do all LEDs use the same voltage?
No. Forward voltage varies depending on the LED’s semiconductor material, color, and design.

How long do LEDs last?
Their operating life depends on current, temperature, construction, and other conditions. Always follow the manufacturer’s specifications.
