POCKET-SIZE AUTO-RANGE MULTIMETER
- $29.95
- Brand: Pro'sKit
- Availability: 2 In Stock
- SKU: DMM-1506
Pro'sKit# MT-1506. Full-function, auto-range, true RMS multimeter. Large 3-3/4 digit LCD readout. Built-in test leads. Pocket-size. Specifications:• DCV: 400mV, 4 / 40 / 400V ±(0.5%+4d), 600V ±(1%+4d)• ACV: 400mV ±(1.5%+6d),...
Tags: Test Equipment

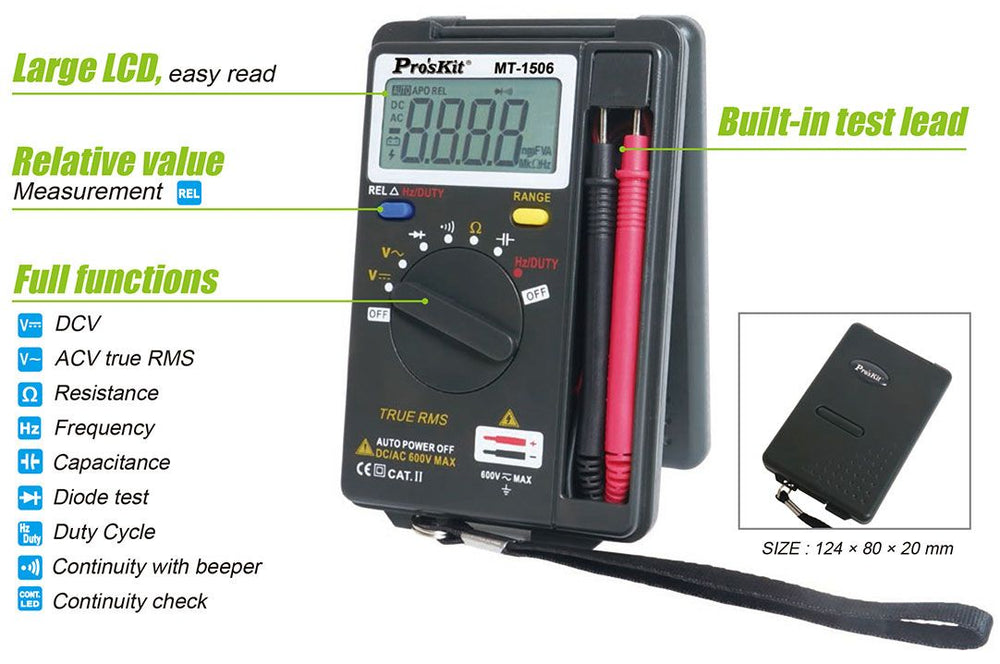

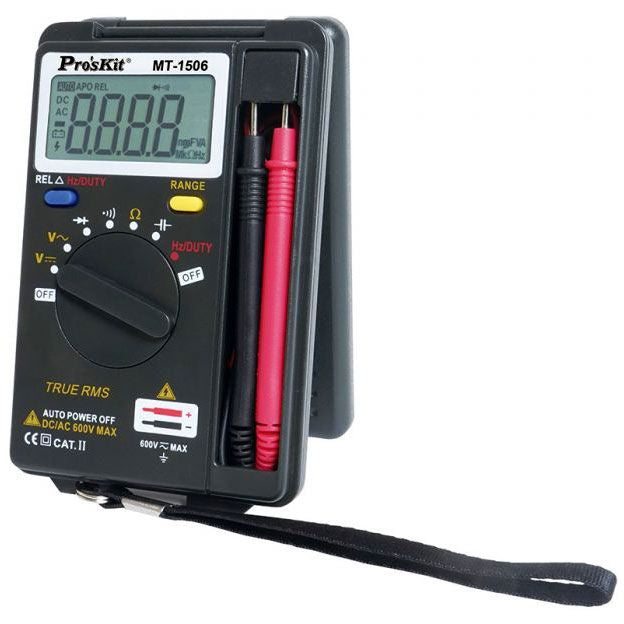

Pro'sKit# MT-1506.
Full-function, auto-range, true RMS multimeter. Large 3-3/4 digit LCD readout. Built-in test leads. Pocket-size.
Specifications:
• DCV: 400mV, 4 / 40 / 400V ±(0.5%+4d), 600V ±(1%+4d)
• ACV: 400mV ±(1.5%+6d), 4 / 40 / 400V ±(0.8%+6d), 600V ±(1.0%+6d)
• Resistance: 400Ω ±(0.8%+5d), 4k / 40k / 400k / 4MΩ ±(0.8%+4d), 40MΩ ±(1.2%+5d)
• Frequency: 100 / 1000Hz / 10k / 100k / 1MHz / 10MHz ±(0.5%+4d)
• Capacitance: 4nF ±(5%+40d), 40n / 400n / 4μ / 40μ ±(3.5%+8d), 2000μF ±(5%+8d)
• Duty cycle: 0.1~99.9% ±(0.5%+4d)
• Continuity with beeper: 50 ±30Ω
• Diode test: Range: 0 ~ 1.5V Resolution: 1mV
• Power source: 2 x 1.5V AAA battery (Not included)
• Size: 4.9 x 3.1 x 0.8"
