STANDARD SERVO
- $9.20
- Brand: Aretronics
- Availability: 8 In Stock
- SKU: DCS-116

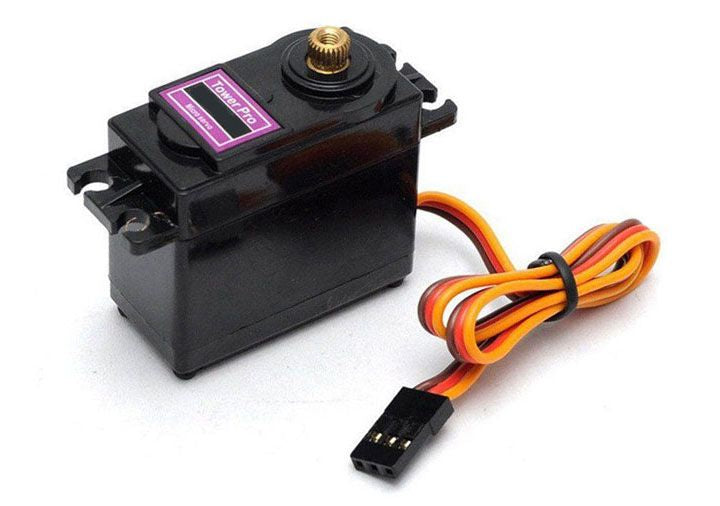

Digital high torque servo. Metal gears and bushing, 180° rotation. Servo arms and screws included. Dimensions 40.7 x 19.7 x 42.9mm.Specs:· Stall torque: 10.5kg/cm (4.8v); 13kg/cm (6v)· Operating speed: 0.20sec/60degree...
Tags: Servos and Accessories

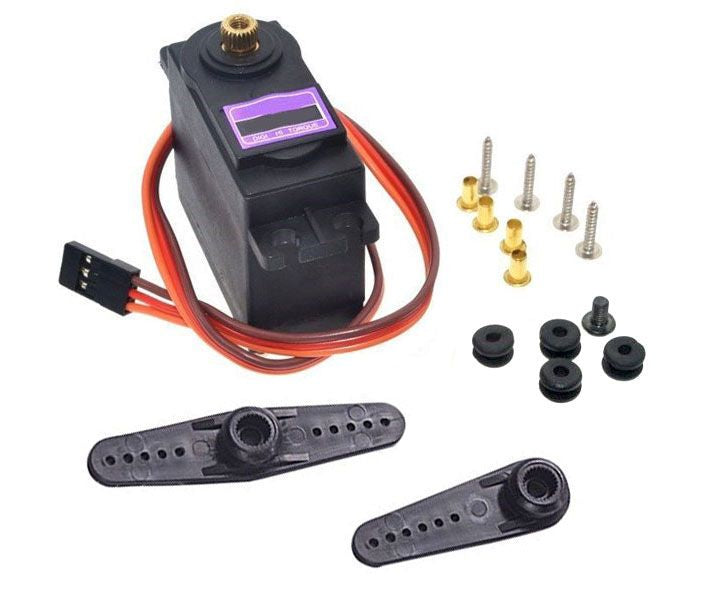

Digital high torque servo. Metal gears and bushing, 180° rotation. Servo arms and screws included. Dimensions 40.7 x 19.7 x 42.9mm.
Specs:
· Stall torque: 10.5kg/cm (4.8v); 13kg/cm (6v)
· Operating speed: 0.20sec/60degree (4.8v); 0.17sec/60degree (6.0v)
· Operating voltage: 4.8v-6.6v
· Temperature range: 0°C-55°C
· Servo wire length: 11.50"
· Current draw at idle: 10mA
· No-load operating current draw: 170mA
· Servo plug: JR (fits JR and Futaba)
